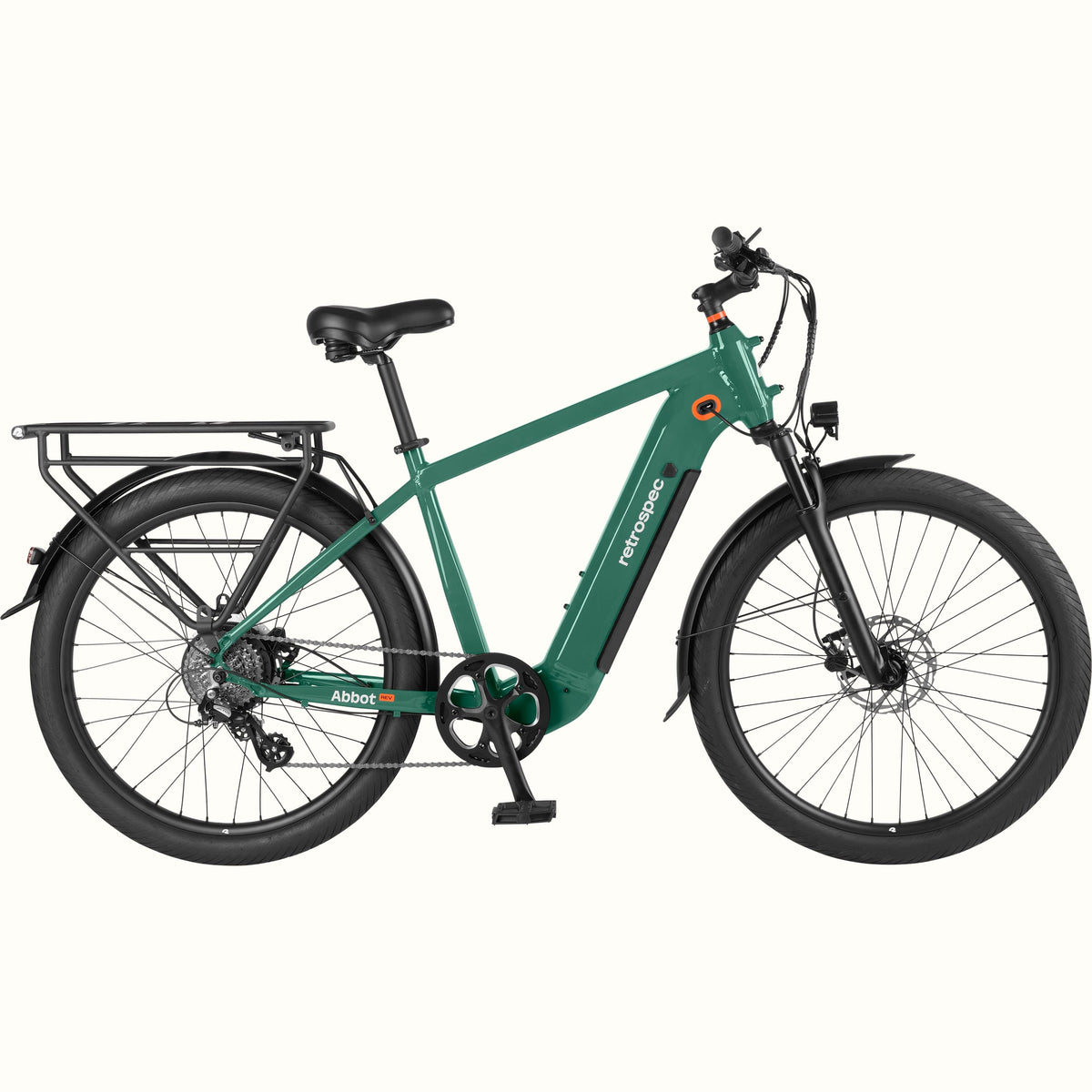

Abbot Rev
Retrospec
Abbot Rev
✓ Free curbside shipping, continental U.S.
✓ Manufacturer warranty — claims handled by us
✓ Non-warranty returns: 20% restocking fee, original packaging
✓ Questions? (833) EBIKE-FL, 9–6 Eastern
Frameset:
Sizes: 18" Step Over;
Material: Alloy, 6061 TIG welded, hydroformed tubing
Dropouts:
Decals:
Replaceable Der Hanger
Fork:
DriveTrain
Derailleur - Rear: Shimano Altus 8speed
Shifter: Shimano Rapidfire Plus
Crankset: 46T w/double alloy chainguard
Chain: KMC Z8.
BB: JIS square taper cartridge
Freewheel/Cog: Shimano 11-34T
Wheelset
Rims: Alloy 36H for disc brake
Hubs: Alloy bolt on 17mm nut
Spokes: 13G/2.3mm w/brass nipples
Tires: 26 x 4.0, with moto-belt anti-puncture protection
Components
Headset: Threadless, 1 1/8"
Brakes: Tektro hydraulic with ebike specific 180mm rotors and semi-metalic pads
Handlebars: Alloy 700mm
Grips: Comfort with alloy lock rings
Stem: Die-Casting alloy; 31.8mm barbore, ext. 60mm +6d, 4-bolt faceplate
Saddle: SuperSoft MTB
Seatpost: Alloy; 30.9mm diameter, 400mm length
Seatpost Clamp: Alloy QR
Pedals: Alloy platform 9/16"
Extras
Kickstand: Rear mount, adjustable, aluminum alloy
Lights: Integrated/system-powered front and rear lights w/brake function
Fenders: Full coverage front and rear
Tools: 4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver
Weight - Bike (Assembled w/battery): 71 lbs
Class: Class 2: pedal-assist and/or throttle-assisted, 20 mph max.
Rover Compatible: Yes
E-Power System
Motor: 750W geared
Battery: 48V 720W LG 21700 cells
Modes: PAS/Thumb throttle Left side , cadence sensor
Display: Full color display with 6 levels of assist, anytime throttle and walk mode.
Controller: Retrospec 22Amp
Charge Time: Approximately 6hrs
Watt Hours: 720Wh
Range: 720Wh: 50+ Miles
Questions people actually ask
Does it arrive assembled?
It ships about 95% assembled in the manufacturer's box. Handlebars, front wheel, pedals and seat are the usual remaining steps, and the tools are in the box.
Who handles the warranty if something fails?
We do. The warranty is the manufacturer's, but the claim, the paperwork and the replacement part go through us. You have one phone number and one email, not a factory support queue.
How long does shipping take?
Free curbside delivery anywhere in the continental U.S. Most orders leave the manufacturer's warehouse within 2–4 business days; we send tracking as soon as it ships.
Can I return it?
If something's defective, the warranty claim goes through us at no cost to you — the manufacturer covers it. If you simply change your mind, we do accept the bike back, but a 20% restocking fee applies and it has to come back in its original factory packaging, unused and undamaged. Full written terms will be posted on our returns page.
