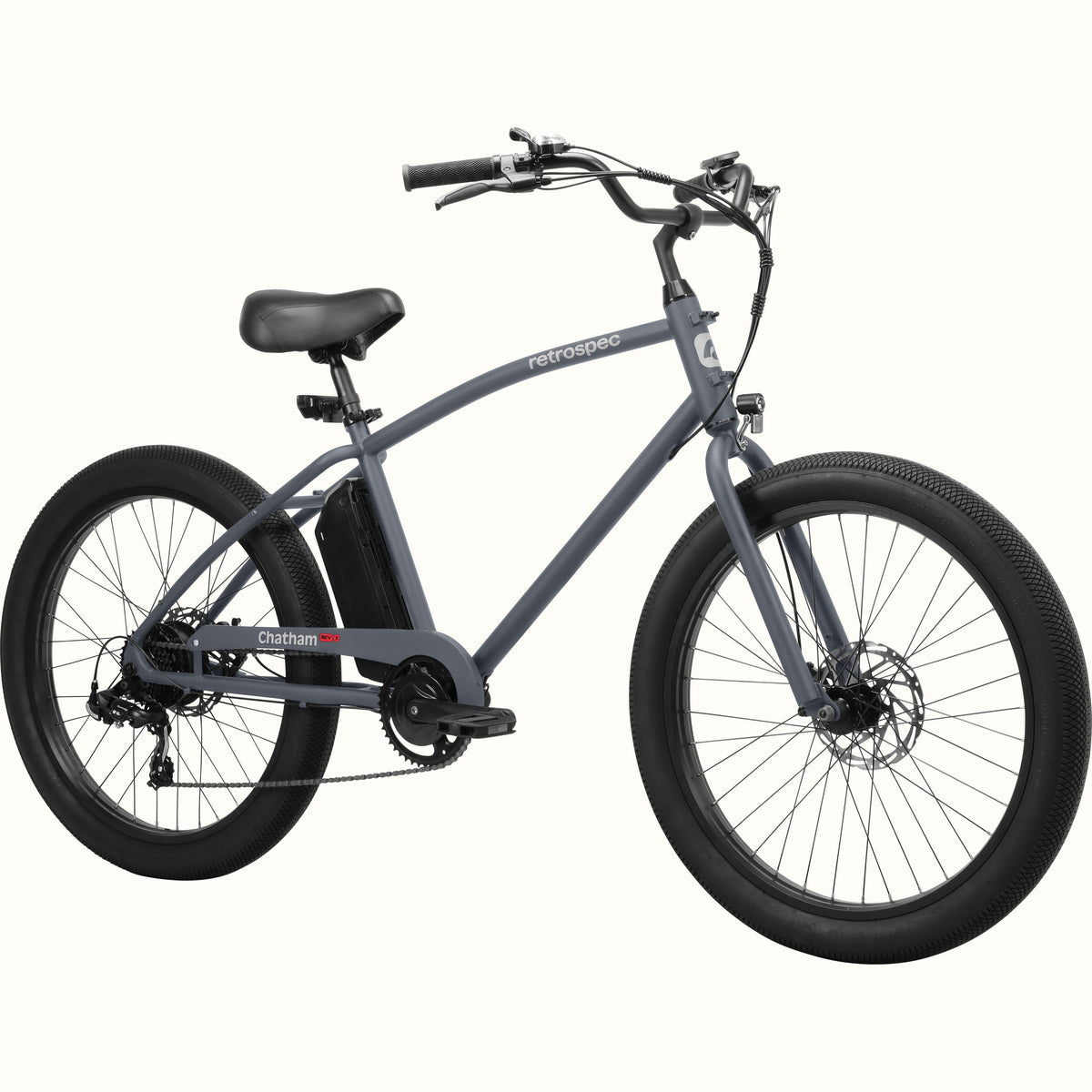

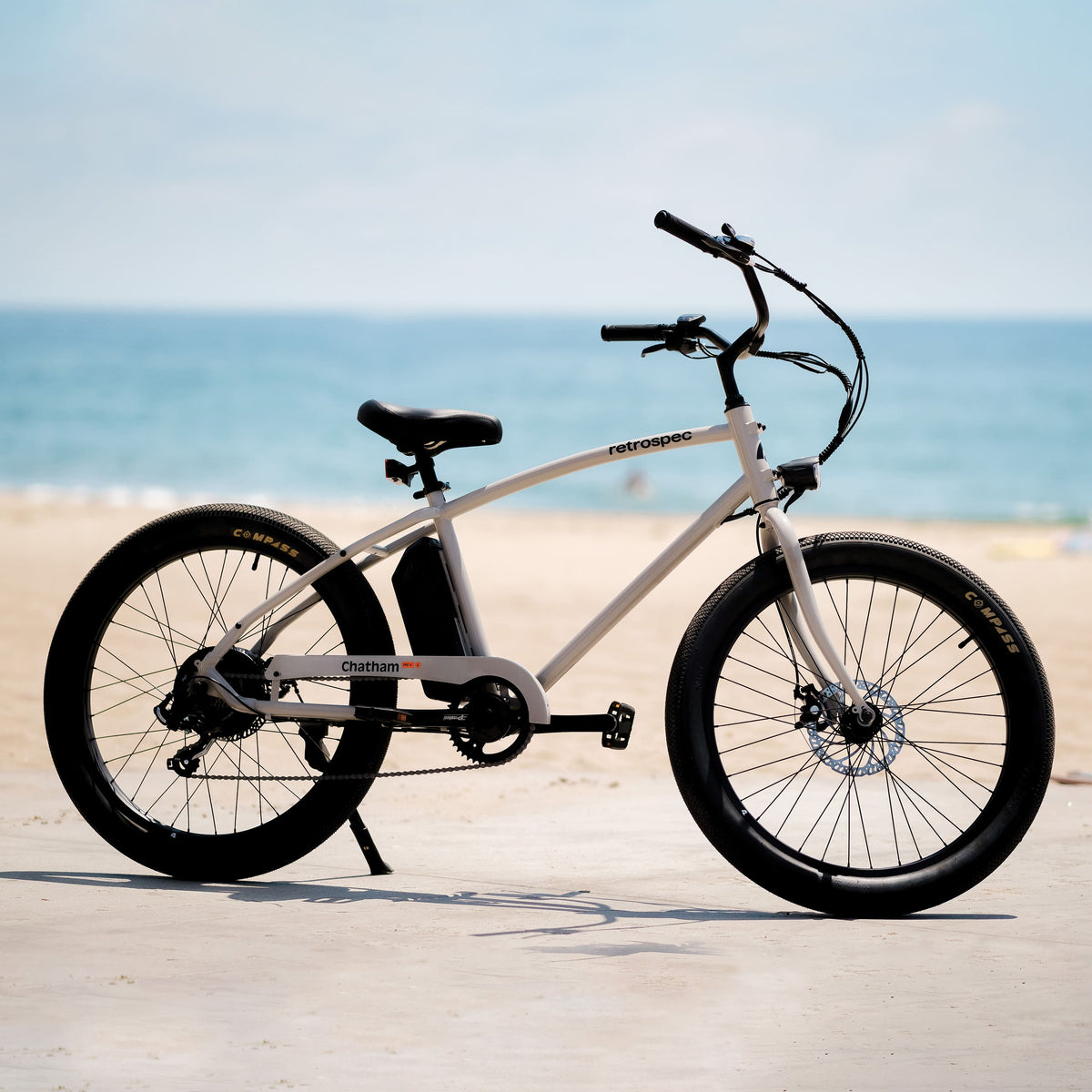

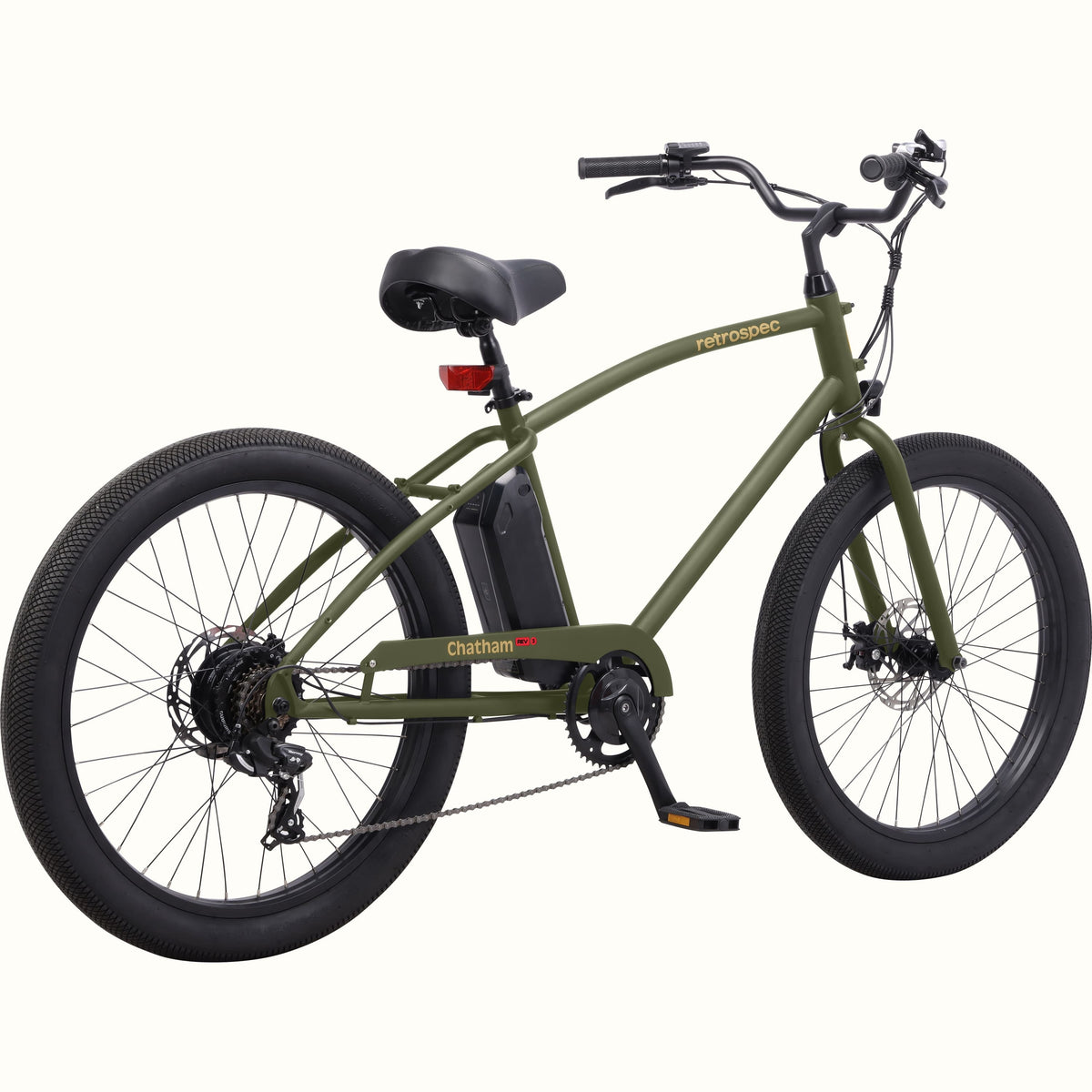

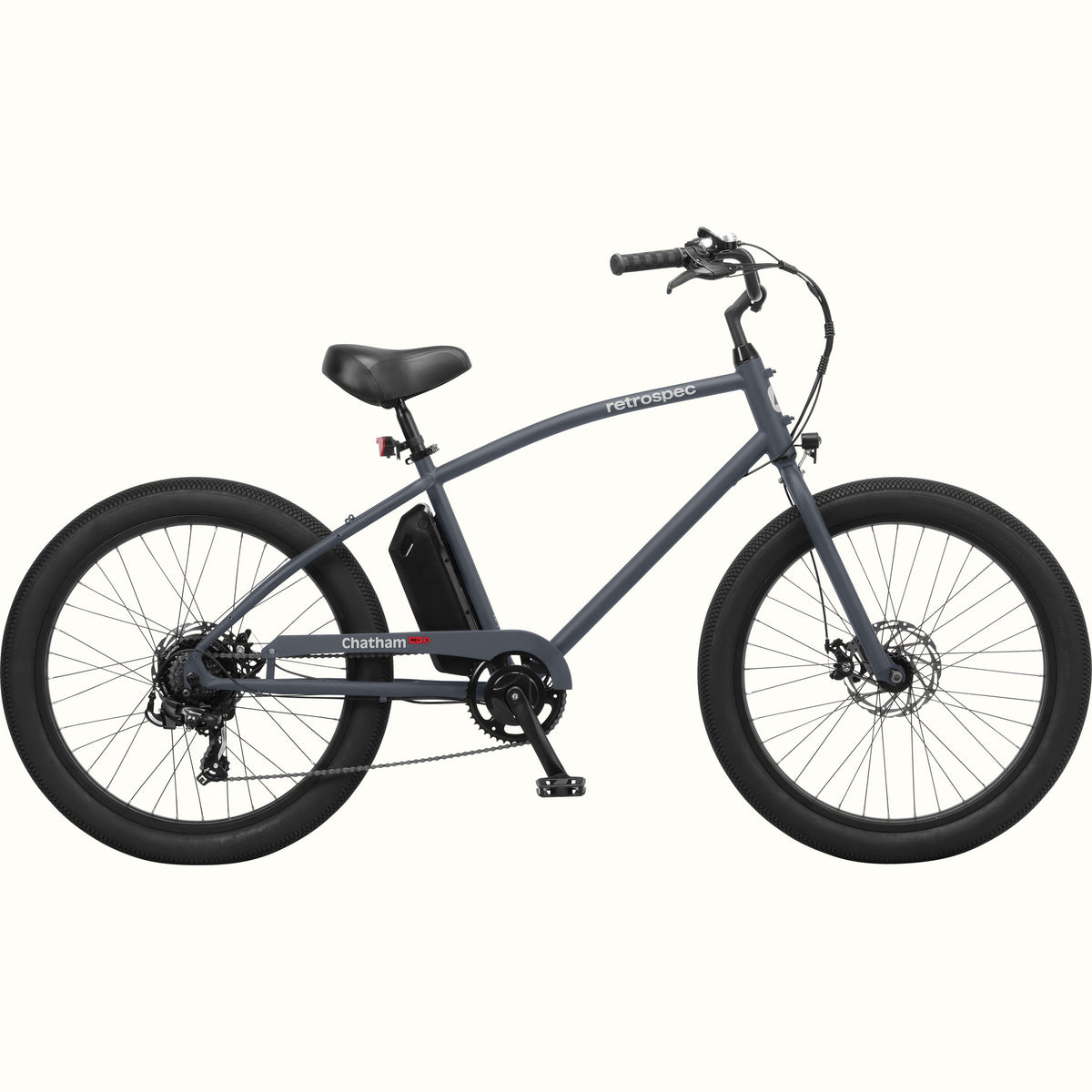

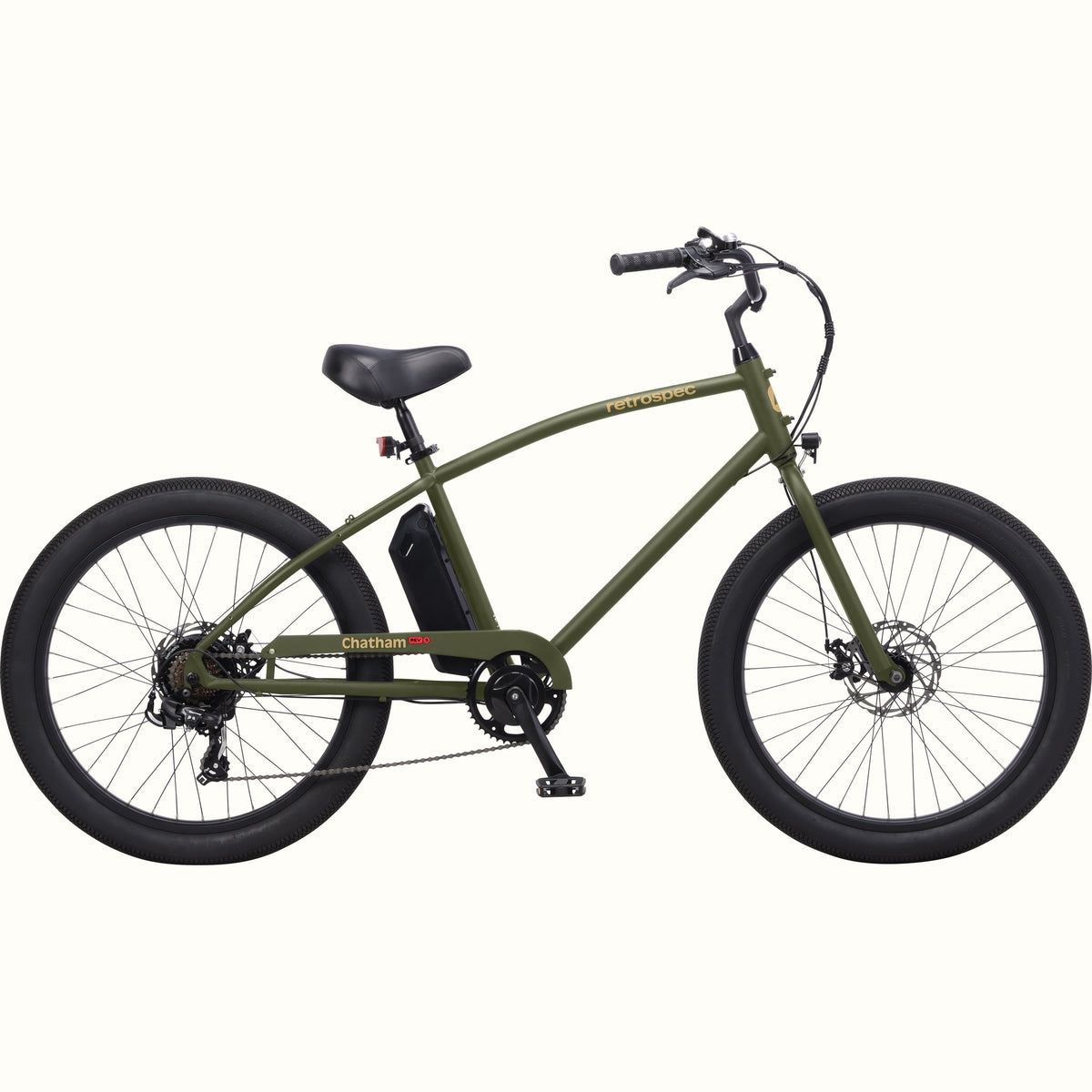

Chatham Rev 3
Retrospec
Chatham Rev 3
✓ Free curbside shipping, continental U.S.
✓ Manufacturer warranty — claims handled by us
✓ Non-warranty returns: 20% restocking fee, original packaging
✓ Questions? (833) EBIKE-FL, 9–6 Eastern
Frameset:
Sizes: 18" Step Over
Material: Steel
Dropouts: 1x rear fender eyelets, rear rack mounts,
Decals
Fork: Steel
Drivetrain:
Derailleur - Rear: Shimano Tourney 7 speed
Shifter: Shimano Tourney 7 speed
Crankset: 42T alloy
Chain: KMC Z7
BB: JIS square taper cartridge
Freewheel/Cog: Shimano 14-34T
Wheelset:
Rims: Alloy 36H for disc brake
Hubs: Alloy bolt on 17mm nut
Spokes: 13G/2.3mm w/brass nipples
Tires: 26x3.0
Components:
Headset: Threaded 11/8"
Brakes: Tektro mechanical with 180mm rotors and semi-metalic pads [OEM Replacement Pads: Tektro P20.11/Resin for 2-Piston (QBP#BR7193). Other pads that will fit: Tektro E10.11/Organic, A11TS/Sintered, A10YS.]
Handlebars: Alloy cruiser
Grips: Comfort with alloy lock rings
Stem: Alloy quill
Saddle: Comfort Cruiser
Seatpost: Aluminum 28.6mm diameter, 350mm length
Seatpost Clamp: Alloy QR
Pedals: PP Platform 9/16"
Extras:
Kickstand: Rear mount, adjustable, aluminum alloy
Axle (buddy) Pegs: n/a
Rear Carrier: n/a
Bell: n/a
Light(s): Battery operated front and rear lights
Fenders: n/a
Chaincover: Full Coverage
Basket: n/a
Bottle Cage: n/a
Tools: 2/3/4/5/6mm hex wrench; 8/10/15/17mm open wrench; 13g spoke wrench
Carton
Weight - Bike (assembled w/battery): 59lbs.
Weight - Max Rider: 350lbs / 158kgs not including bike weight.
Class: Class 2: pedal-assist and/or throttle-assisted, 20 mph max.
E-Power System:
Motor: 350W geared
Torque: 55Nm
Battery (w/key & slide in/out housing): 36V 360Wh
Charging Cycles: 500
Charger: Retrospec 2A
Modes: PAS/Thumb throttle Left side , cadence sensor

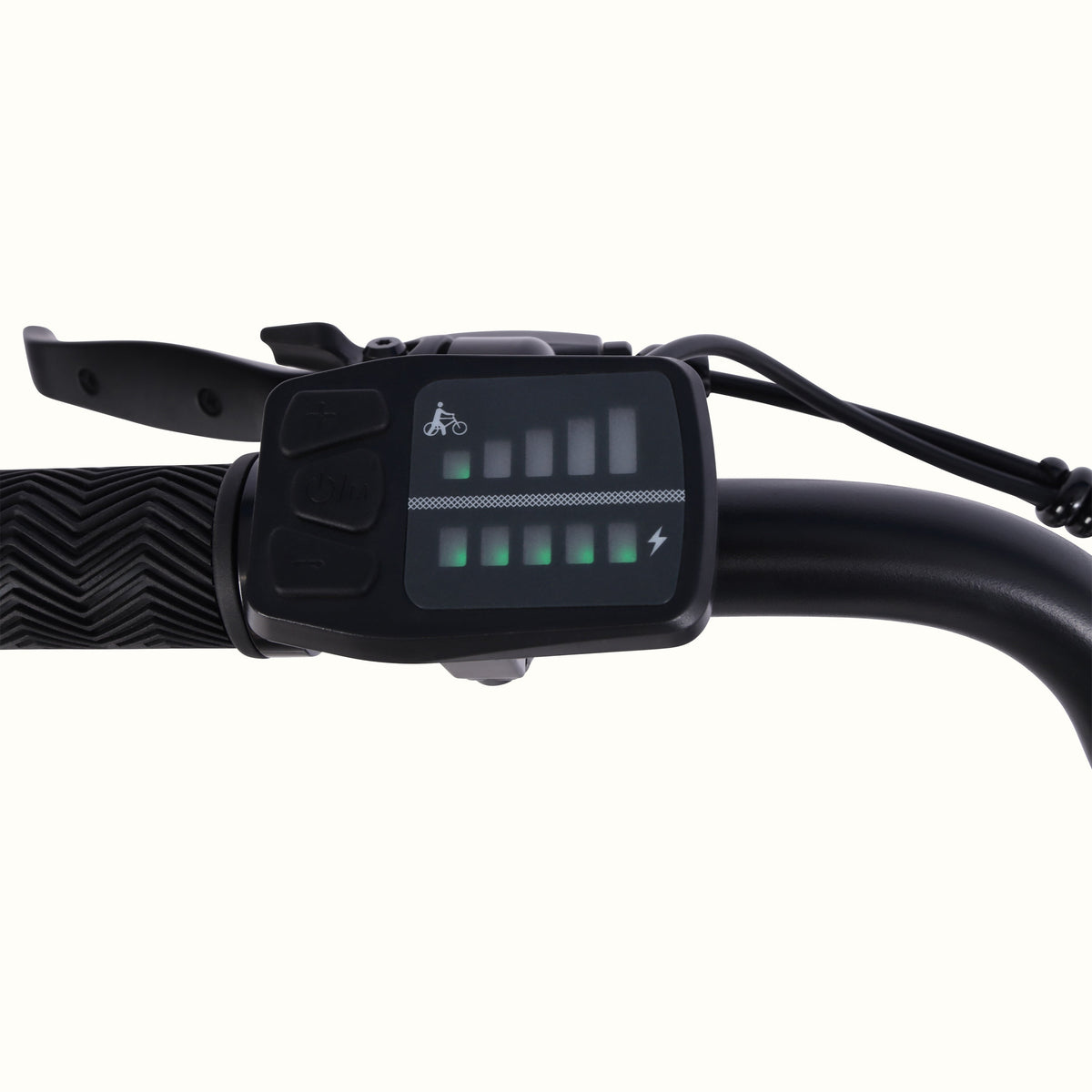

Display: LED with 5 levels of assist, anytime throttle and walk mode
Controller
Retrospec: 18Amp
Charge Time (empty to full, estimated, could be longer): Approximetly 4.5hrs.
Watt Hours (Wh): 360Wh
Range Conservative (@ 1mi = 20watt hours): 25+
Range - Miles: 360Wh: 38+
Questions people actually ask
Does it arrive assembled?
It ships about 95% assembled in the manufacturer's box. Handlebars, front wheel, pedals and seat are the usual remaining steps, and the tools are in the box.
Who handles the warranty if something fails?
We do. The warranty is the manufacturer's, but the claim, the paperwork and the replacement part go through us. You have one phone number and one email, not a factory support queue.
How long does shipping take?
Free curbside delivery anywhere in the continental U.S. Most orders leave the manufacturer's warehouse within 2–4 business days; we send tracking as soon as it ships.
Can I return it?
If something's defective, the warranty claim goes through us at no cost to you — the manufacturer covers it. If you simply change your mind, we do accept the bike back, but a 20% restocking fee applies and it has to come back in its original factory packaging, unused and undamaged. Full written terms will be posted on our returns page.
